Availability: not in Stock

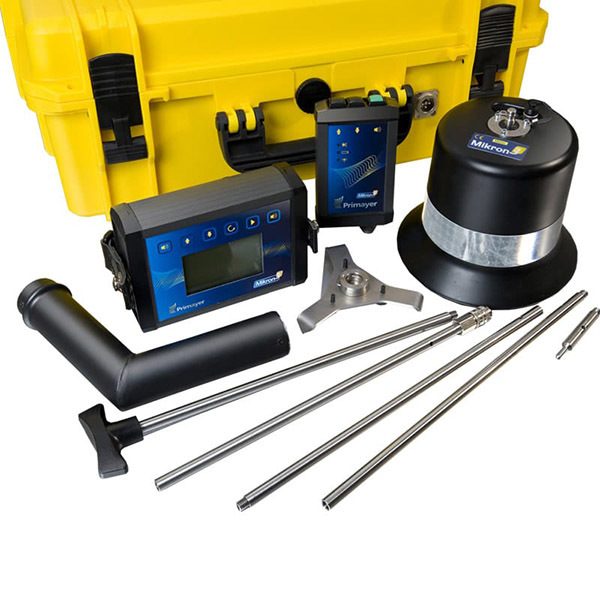

Mikron 3 – PrimeTouch App’s Wireless ground microphone for leak location

The Mikron3 ground microphone enables very high quality surface listening to confirm a leak position. The Mkron3 App is selected on PrimeTouch, which also hosts Eureka3, thus combining correlation and leak listening on a common operating platform. The touch-screen provides very simple operation.

Features

    • Very high acoustic performance
    • Touch-screen operation
    • Wireless sensor communication for reduced wind noise
    • Minimum noise level bar display
    • Optional frequency analysis bar display
    • Full frequency spectrum display

Principle

Mikron3 detects noise generated by leaks in water pipes. The leak noise travels through the water and pipe wall and can be detected by listening at valves or hydrants. Leak noise also propagates from the leak to the ground surface where it can be detected using the sensitive ground microphone.

Description

Overview

The Mikron 3 ground microphone enables very high quality surface listening to confirm a leak position. The Mikron3 App is selected on PrimeTouch, which also hosts Eureka3, thus combining correlation and leak listening on a common operating platform. The touch-screen provides very simple operation.

Principle

Mikron3 detects noise generated by leaks in water pipes. The leak noise travels through the water and pipe wall and can be detected by listening at valves or hydrants. Leak noise also propagates from the leak to the ground surface where it can be detected using the sensitive ground microphone.

Minimum Noise Level digital display

Leak noise propagates from the leak to the ground surface where it can be detected using the sensitive ground microphone. For accurate leak pinpointing Mikron displays the Minimum Noise Level. This is the background noise level, including leak noise, but without transient noises, such as traffic.

Frequency display

To further enable accurate leak pinpointing Mikron3 also displays the frequency content detected as a bar graph. This will increase as the sensor is positioned closer to the leak.

ภาพรวม

Mikron3 ground microphone เป็นอุปกรณ์ฟังเสียงท่อรั่วบนพื้นผิวที่มีคุณภาพสูง ซึ่งจะช่วยยืนยันตำแหน่งที่แน่นอนของจุดรั่ว ถูกออกแบบมาให้สามารถแสดงผลบน PrimeTouch ที่ใช้งานกับ Eureka 3 ได้ ดังนั้นจึงเป็นการรวมเอาฟังก์ชันการหาตำแหน่งของจุดรั่ว และการฟังเสียงไว้บน platform เดียวกัน โดยการใช้งานแบบหน้าจอสัมผัสที่ใช้งานง่าย

หลักการทำงาน

Mikron3 จะตรวจหาเสียงที่เกิดจากจุดรั่วบนท่อจ่ายน้ำ เสียงนี้จะเดินทางผ่านน้ำและผนังท่อ ซึ่งสามารถฟังได้ตามประตูน้ำหรือหัวดับเพลิง นอกจากนี้เสียงจุดรั่วยังเดินทางแพร่ผ่านพื้นผิวต่างๆ ซึ่งสามารถตรวจหาได้โดยการใช้ ground microphone ที่มีความไวสูง

การแสดงระดับเสียงต่ำสุด

เพื่อ ความแม่นยำในการกำหนดตำแหน่งจุดรั่ว Mikron3 จะแสดงผลค่าระดับเสียงต่ำสุด ซึ่งจะเป็นค่า background noise ที่รวมเสียงจุดรั่วอยู่ด้วย แต่ไม่รวมเสียงที่ผ่านเข้ามาเป็นครั้งคราว เช่น เสียงรถบนท้องถนน

การแสดงความถี่

เพื่อให้ผลลัพธ์มีความแม่นยำมากขึ้น Mikron3 จะแสดงความถี่ของการเกิดเสียงที่ตรวจหาด้วยกราฟแท่ง และความถี่นี้จะเพิ่มมากขึ้นเมื่อ sensor เลื่อนเข้าใกล้จุดรั่วมากขึ้น
